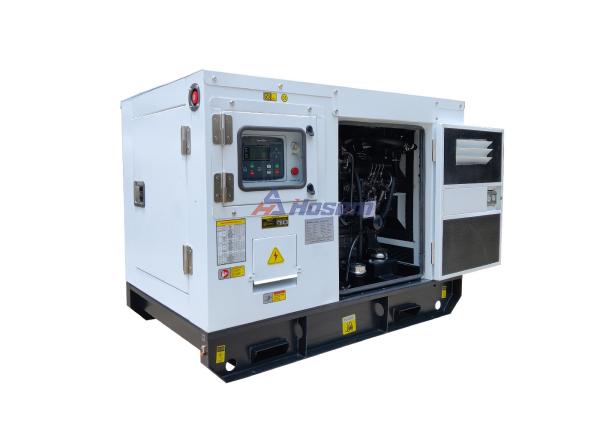

Silent Type Yanmar Marine Generator 18kW For Yacht

Name: Silent Type Yanmar Marine Generator 18kW For Yacht
Brand: Hosem Power
Price: 1 USD

Buy cheap Silent Type Yanmar Marine Generator 18kW For Yacht product

Brand Name : Hosem Power

Model Number : A-YM24M

Certification : CE/ISO9001

Place of Origin : CHINA

MOQ : 1 SET

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 500 unit per month

Delivery Time : 30 days

Packaging Details : ply-wood or plastic film

Product Name : Marine Diesel Generator Set

Engine Brand : Yanmar

Prime Output : 18kW

Cooling Method : Heating Exchanger

Cylinder : 4

Stroke : 4

Speed : 1500RPM/1800RPM

Noise Level : 73 @ 7 M

Contact Now

Silent Type Yanmar Marine Generator, 18kW Marine Generator, Silent Marine Generator for Yacht, 4TNV88-GGE

Marine Diesel Generator Set MODEL	A-YM25
Powered by Aoling-Yanmar Engine
Prime Power (50HZ)	18KW
Standby Power (50HZ)	20KW
Power Factor	0.8 (Lagging)
Phase Wires	3-phases 4-Wires
Start Model	Electric
Protection	Low oil-pressure, High water temperature, Over-speed, Over-current
Engine Model	Yanmar 4TNV88-GLE 4 Cycle
Cylinders	4
Cylinder Arrangement	L
Bore x Stroke(mm)	88X 90
Compression Ratio	16.5:1
Speed	1500rpm
Cooling Method	Heat exchanger
Starting Method	24V DC electrical start
Engine Displacement (L)	2.19
Inspiration (L)	Natural
Noise (Db)	≤ 80
Alternator Model	ASF184G
Alternator Power	30kW Brushless with AVR
Voltage	400/230V
Protection	IP23
Voltage Regulation	±4%
Insulation Class	H
Voltage Control	AVR
Net Weigh (KGS)	550
Dimensions (L x W x H) mm	1350570910
Controller	Smarten HGM6110N
Standard	Muffler * 2PCS
	Battery 80A * 2 PCS

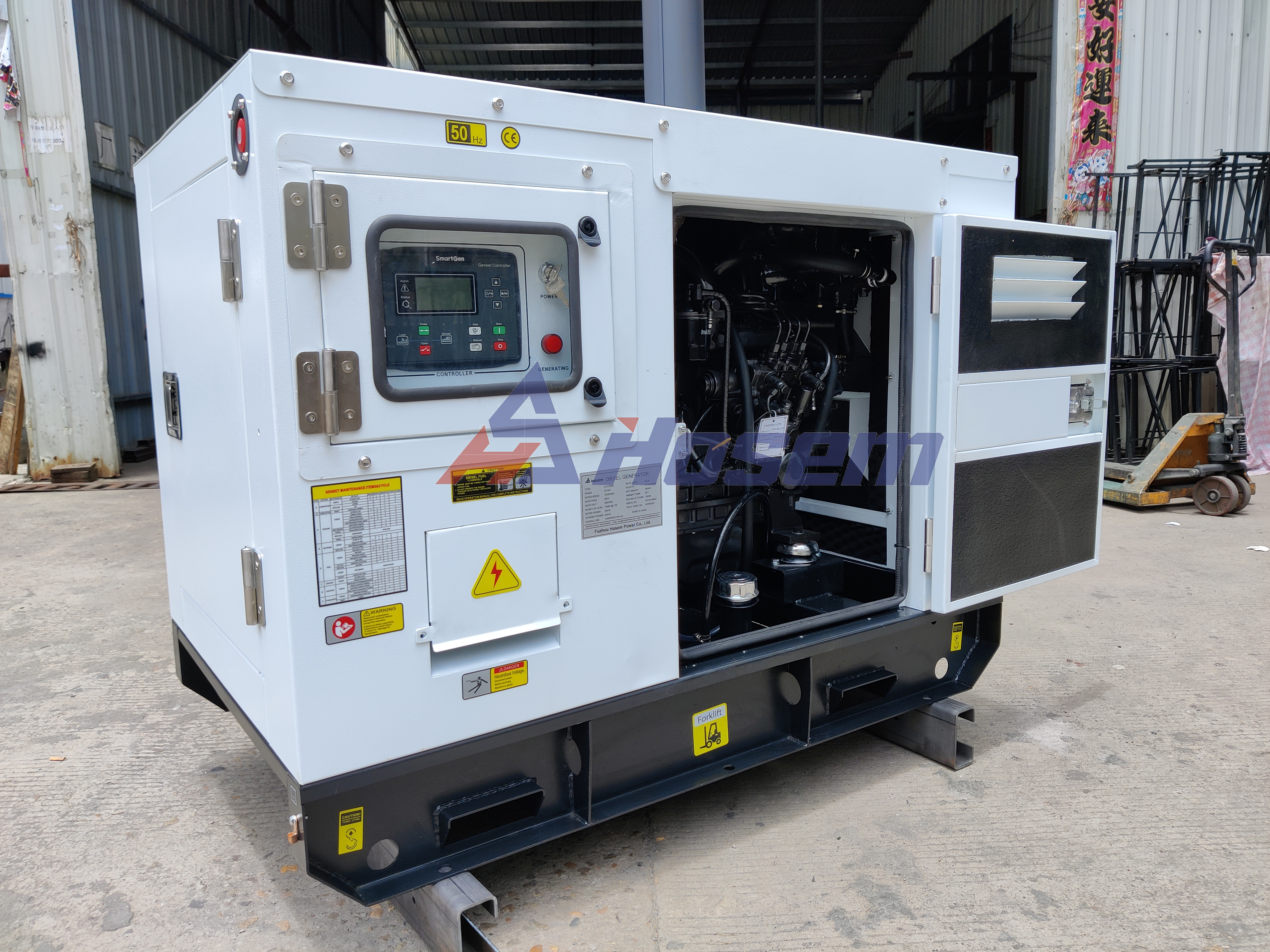

Silent Type Yanmar Marine Generator 18kW For Yacht

OPTIONAL EQUIPMENT

REMOTE START / STOP PANEL W / 20FT EXTENSION HARNESS
ELECTRIC FUEL PUMP
WET EXHAUST MANIFOLD
WET TURBOCHARGER
CIRCUIT BREAKER

A quiet generator is of upmost importance when pleasure cruising. Hosem marine generators are so compactly constructed that they require only minimal space onboard. As petrol is not suitable for marine uses, all Hosem marine generators are driven by diesel engines from manufacturers such as Yanmar, Cummins and Weichai etc.

Silent Type Yanmar Marine Generator 18kW For Yacht

FAQ
Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy, Or 100% irrevocable L/C at sight.
Q: What is your lead time?
A: About 20-30 days after receiving advance deposit or original L/C.
Q: What warranty do you provide?
A: One year, during the guarantee period, we will supply free of the easily damaged parts for the possible problems except for the incorrect operation. After expiration, we supply cost spare parts for Genset maintenance.
