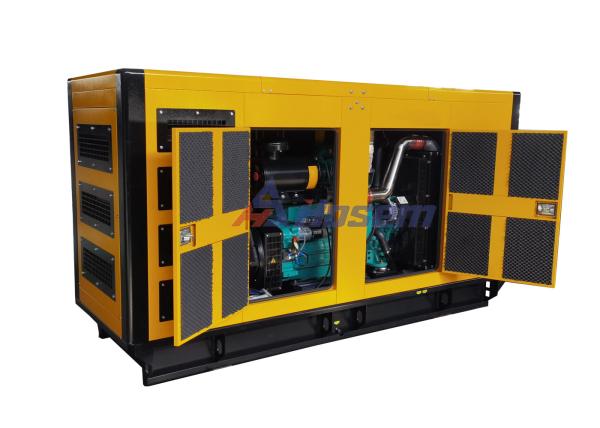

Water Cooled 400kVA 6ZTAA13-G3 Cummins Diesel Generator Set

Product Categories

Fuzhou Hosem Power Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Water Cooled 400kVA 6ZTAA13G3 Cummins Diesel Generator Set
Brand: Hosem Power
Price: 1 USD

Brand Name : Hosem Power

Model Number : A-C413

Certification : CE/ISO9001

Place of Origin : CHINA

MOQ : 1 SET

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 500 unit per month

Delivery Time : 25 Days.

Packaging Details : ply-wood or plastic film

Product Name : Cummins Diesel Generator Set

Prime Power : 375kVA

Standby Power : 413kVA

Frequency : 50Hz

Engine Brand : Cummins

Engine Model : 6ZTAA13-G3

Alternator Brand : Stamford/Leroy Somer/ Mecc Alte

Controller Modul : Deepsea/ ComAp/Smartgen

Noise Level : 75dB @ 7 M

Contact Now

Best Water Cooled Cummins Diesel Generator Set Wholesale Supply , 400kVA Cummins Generator Set , 6ZTAA13-G3

Generator Set Specification
Model		A-C413
Max. Power	kVA	413
Max. Power	kW	330
Rate Power	kVA	375
Rate Power	kW	300
Frequency	Hz	50
Rate Voltage	V	400/230
Rate Current	A	541.3
Fuel Tank Capacity	L	485
Dimension For Open-type Genset	mm	3300 X 970 X 1650
Weight For Open-type Genset	kg	3450
Dimension For Soundproof Genset	mm	4350 X 1450 X 2180
Weight For Soundproof Generator	kg	4020
Noise Level for Soundproof Generator at 7M	dBA	80
Battery		Two of 180Amps Free Maintenance Battery

Engine Specification
Engine Manufacturer		Dongfeng Cummins Engine Co., Ltd.
Engine Brand		Cummins
Engine Model		6ZTAA13-G3
No. of Cylinder		6 Cylinder in line
Aspiration		Turbocharged and Air to Air Aftercooled
Governor		Electric
Engine Max. Output Power	kW	374
Displacement	L	13.0
Compression Ratio		17 : 1
Starting Voltage	V	24
Bore	mm	130
Stroke	mm	163
Lubrication Oil Capacity	L	36
Intake Air Flow	L/S	25.5
Fuel Consumption at 100% Load	L/H	76.5

The Cummins generator set is subjected to a comprehensive performance test which includes 50% load, 70% load, 100% load, 110% load and to check, verifies that all control systems, alarm and shut-down protection.
Equipped with battery charger and 24V high performance maintenance-free lead-acid starting batteries and connecting cables.
Stainless galvanized zinc plates with strong corrosion-proof.
Vibration isolators between the engine/alternator and base frame.
Equipped with industrial silencer and flexible exhaust hose.
Designed to comply with ISO8528/GB2820.
Powered by Cummins engine and coupled with Stamford alternator.
Water jacket preheater, oil heater and double air cleaner, etc. are available.

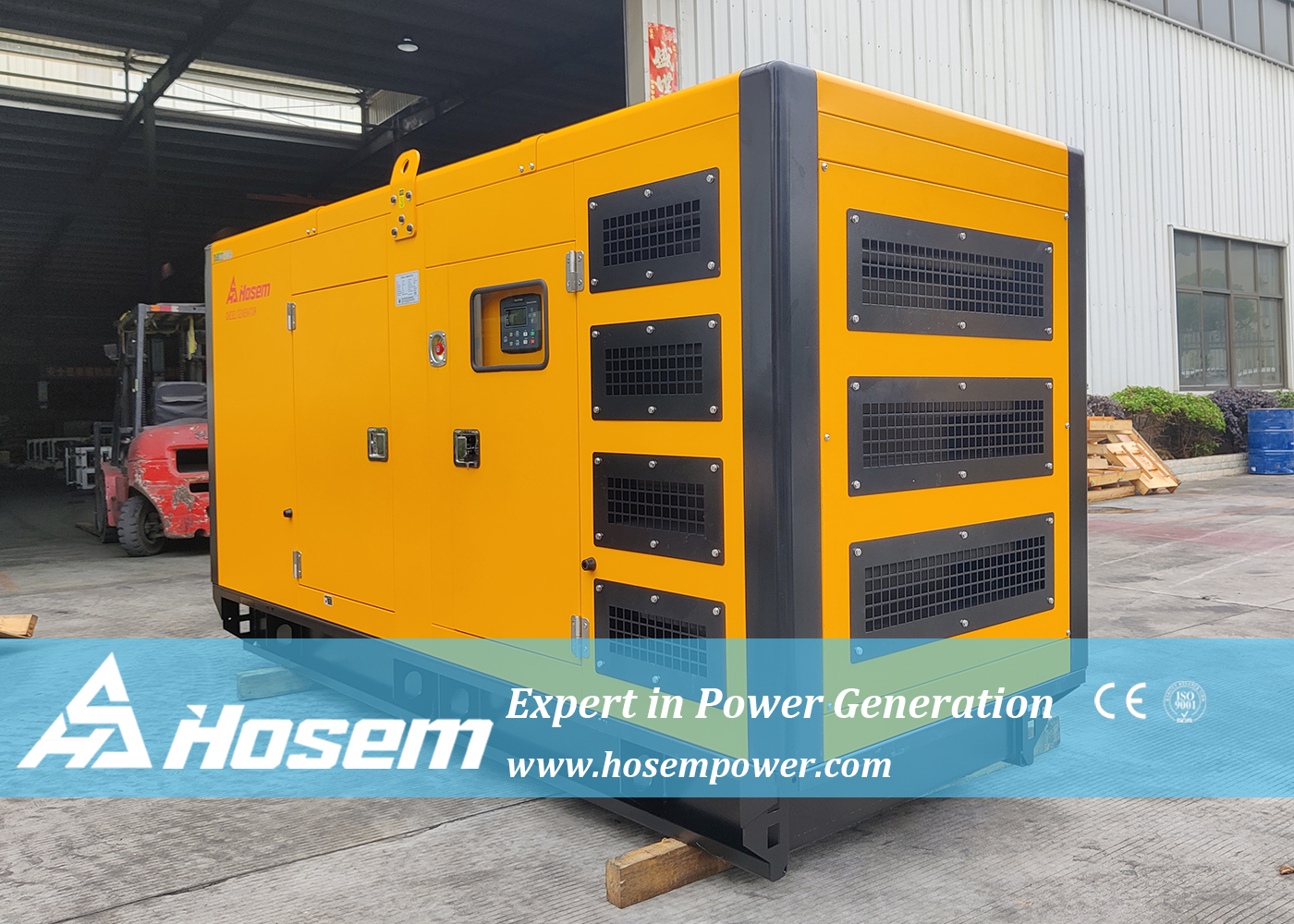

Water Cooled 400kVA 6ZTAA13-G3 Cummins Diesel Generator Set

Options

Hosem Power provides a full line of brand-new and high-quality products. Each and every unit is strictly factory tested before shipment.
Quality warranty is according to our standard conditions: 12 months from BL date or 1000 running hours, whichever comes first.
Service and parts are available from Hosem Power or distributors in your location.
Hosem Power guarantees the use of BRAND NEW & GENUINE MACHINE.
