Quanchai QC490D 20kVA Diesel Engine 16kW Power Generator For Business and Home
Specification
| Generator Set Specification |
| Model | A-QC20 |
| Max. Power | kVA | 20 |
| kW | 16 |
| Rate Power | kVA | 18 |
| kW | 14 |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 25.3 |
| Dimension For Open-type Genset | mm | 1350 X 750 X 1050 |
| Weight For Open-type Genset | kg | 550 |
| Dimension For Soundproof Genset | mm | 1850 X 850 X 1100 |
| Weight For Soundproof Generator | kg | 860 |
| Noise Level at 7 Meters | dBA | 70 |
| Fuel Tank Capacity | Liters | 75 |
| Battery | One of Free Maintenance Battery |
Technical data--Engine
| Engine Specification |
| Engine Manufacturer | Anhui Quanchai Engine Co., Ltd. |
| Engine Brand | Quanchai |
| Engine Model | QC490D |
| No. of Cylinder | 4 Cylinder in line |
| Aspiration | Naturally Aspirated |
| Governor | Mechanical |
| Engine Max. Output Power | kW | 22 |
| Displacement | L | 2.672 |
| Starting Voltage | V | 12 |
| Bore | mm | 90 |
| Stroke | mm | 105 |
| Lubrication Oil Capacity | L | 6.8 |
| Compression Ratio | 18 : 1 |
| Intake Air Flow | M3/Min | 2 |
| Fuel Consumption at 100% Load | L | 6.6 |
Technical data--Alternator
| Alternator Specification |
| Alternator Manufacturer | Fuzhou Hosem Power Co., Ltd. |
| Alternator Model | ASF184ES |
| Alternator Brand | Hosem |
| Rate Output | kVA | 17 |
| Frequency | Hz | 50Hz |
| Altitude | M | ≤1000 |
| Insulation | Class H |
| Voltage Regulation | SX460 |
| Protection Grade | IP23 |
| Working Temperature without Output Decrease | ≤40℃ |
| Phase | 3 Phase |
| Temperature Rise | 125 Degree Celsius |
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional |
Technical data--Controller
| Control Panel Specification |
| Controller Brand | Smartgen |
| Controller Model | HGM6120N |
| Breaker Brand | Delixi |
| Breaker Capacity (A) | 125 |
| Battery Charger | Smartgen Model BAC06A |
| Emergency Stop Button | Supply |
| Automatic Mains Fail (AMF) | Supply |
| Fuel Level | Supply |
| Automatic Transfer Switch | ATS as optional part |
| Mains Monitor | Supply with AMF Function |
| The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm). |
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller. |
Description
1. Diesel engines are generally more fuel efficient than gasoline engines. Quanchai diesel generators optimize fuel consumption, resulting in longer-term cost savings, especially when the generator is used frequently or for long periods of time.
2.The quality of the diesel generator is very reliable and has a very high cost performance. It is a good choice for those with low budget.
3.Our company Quanchai diesel generators are manufactured from high quality components and undergo strict testing to ensure durability and extended service life.
4.Quanchai diesel generator available from 10kVA to 36kVA power capacities to meet the diverse needs of customers.
5.Our company's diesel generator sets meet production standards that ensure safety and reliability during operation. The unit is equipped with an automatic shutdown mechanism in case of overheating or low oil pressure, protecting the generator and the equipment and mechanisms connected to it.
6.Quanchai disel genset product sales and service network covers multiple countries and regions, which ensures that customers can easily obtain reliable technical support, spare parts and service assistance when they need service, and better improves the customer ownership experience.
7.Quanchai diesel generators combine high performance, reliability and efficiency at a very competitive price, providing excellent value for money. Their reputation for quality and durability ensures customers receive reliable energy solutions that deliver long-term benefits.
FAQ:
Q1: What is the brand name of the Quanchai Generator Set?
A1: The brand name of the Quanchai Generator Set is Hosem.
Q2: What's your payment terms?
A2: 30% T/T With Order, 70% balance paid by T/T before shippment.
Q3: Where is the Quanchai Generator Set from?
A3: The Quanchai Generator Set is from China.
Q4: What is the power output of the Quanchai Generator Set?
A4: The power output of the Quanchai Generator Set depends on the specific model.
Q5: Can we customize the product?
A5: We have a very experienced technical team, we can customize any product according to your requirements, such as synchronization system, wet exhaust system, ultra-silent system.
Product Tags:
|
|

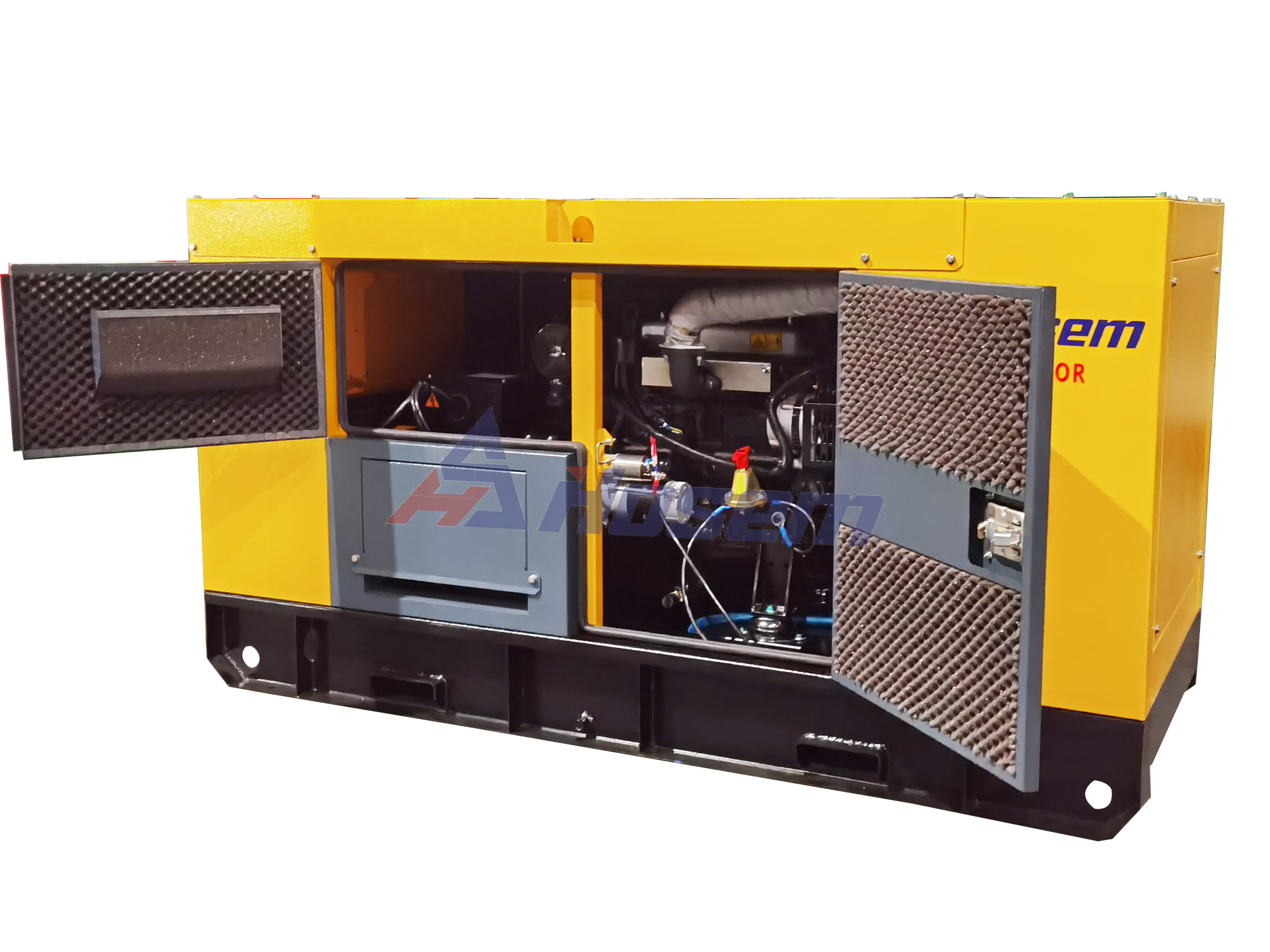

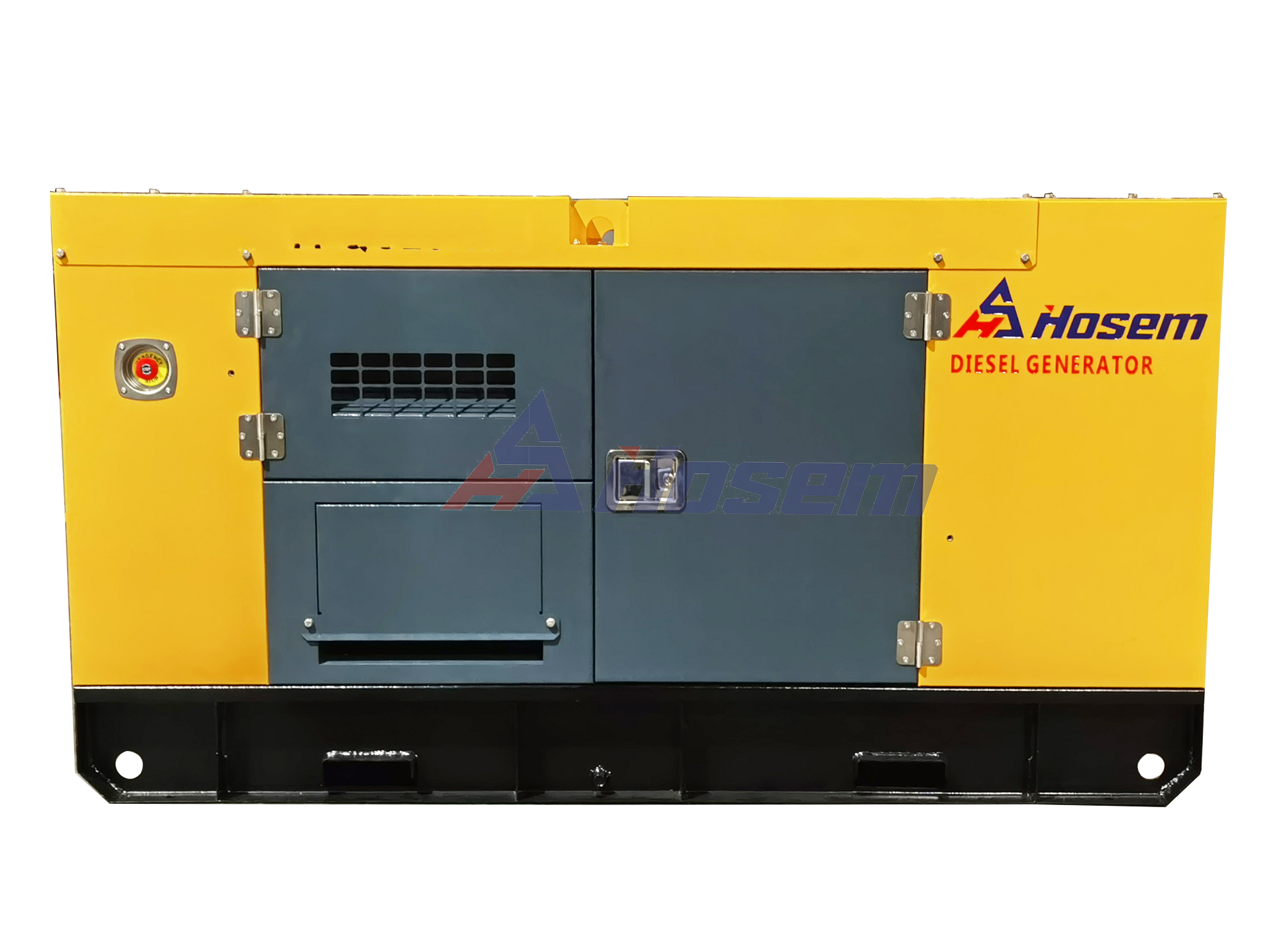

Quanchai QC490D 20kVA Diesel Engine 16kW Power Generator For Business And Home Images
|
