Product Description:
- Fuel Type: Diesel
- Delivery Time: 30-35 Days
- Starting System: Electric
- Phase: Three Phase
- Rated Speed: 1800rpm
With its diesel fuel type, this generator set is designed for maximum efficiency and longevity. It's built to last and can withstand even the toughest of environments. Plus, with a delivery time of just 30-35 days, you won't have to wait long to start using it for your power needs.
The Cummins diesel engine brand is one of the best in the industry, ensuring that you're getting the highest quality product possible. With a standby power of 100kVA 80kW, you can be confident that this generator set will provide all the power you need when you need it most. It is an ideal choice for a variety of applications, from emergency backup power to primary power for residential or commercial buildings.
Features:
1. The standby 100kVA Cummins diesel genset features turbocharger protection and moving parts protection, adhering to CE standards (as required). These features enhance the durability and performance of the genset.
2. All gensets undergo a rigorous 1-hour Testing process at various load levels (0%-25%-50%-75%-100%-110%), ensuring they meet quality standards and can handle different operational demands.
3. Hosem Power is committed to providing the fastest delivery times, ensuring you receive your genset promptly and can start using it for your power needs without delays.
4. Quality Control and Pre-Shipment Inspection: The genset undergoes excellent quality control measures and pre-shipment inspections. This ensures that every component, including base frames, fuel tanks, canopies, ATS cabinets, etc., meets the highest quality standards, eliminating any out-of-controlled quality issues.
5. Hosem Power's 91kVA FAW diesel genset combines innovation, quality, and reliability to provide a robust power solution for your diverse needs.
6. Robust Engine Design: The 91kVA FAW diesel genset features a heavy-duty, four-stroke engine with water cooling and a direct injection fuel system.
7. Equipped with an industrial capacity exhaust silencer, this genset minimizes noise levels during operation, providing a quieter working environment without compromising performance.
8. With a battery charger for the main supply, this genset ensures a continuous and reliable power source, even during prolonged use or in remote locations.
Technical Parameters:
| Generator Set Specification |
| Model | A-C100HS |
| Max. Power | kVA | 100 |
| kW | 80 |
| Rate Power | kVA | 91 |
| kW | 72.8 |
| Frequency | Hz | 60 |
| Rate Voltage | V | 220/127 |
| Rate Current | A | 238.8 |
| Dimension For Open-type Genset | mm | 1820 X 750 X 1050 |
| Weight For Open-type Genset | kg | 1020 |
| Dimension For Soundproof Genset | mm | 2450 X 900 X 1250 |
| Weight For Soundproof Generator | kg | 1360 |
| Engine Specification |
| Engine Manufacturer | Chongqing Cummins Engine Co., Ltd. |
| Engine Brand | Cummins |
| Engine Model | 4BTA3.9-G11 |
| No. of Cylinder | 4 Cylinder in line |
| Aspiration | | Turbocharged & Aftercooled |
| Governor | Electric |
| Engine Max. Output Power | kW | 88 |
| Displacement | L | 3.9 |
| Starting Voltage | V | 24 |
| Bore | mm | 102 |
| Stroke | mm | 120 |
| Lubrication Oil Capacity | L | 11 |
| Alternator Specification |
| Alternator Manufacturer | Cummins Generator Technologies |
| Alternator Model | UCI 224 F |
| Alternator Brand | Stamford |
| Rate Output | kVA | 93 |
| Frequency | Hz | 60Hz |
| Altitude | M | ≤1000 |
| Insulation | Class H |
| Voltage Regulation | AVR Model SX460 |
| Protection Grade | IP23 |
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional |

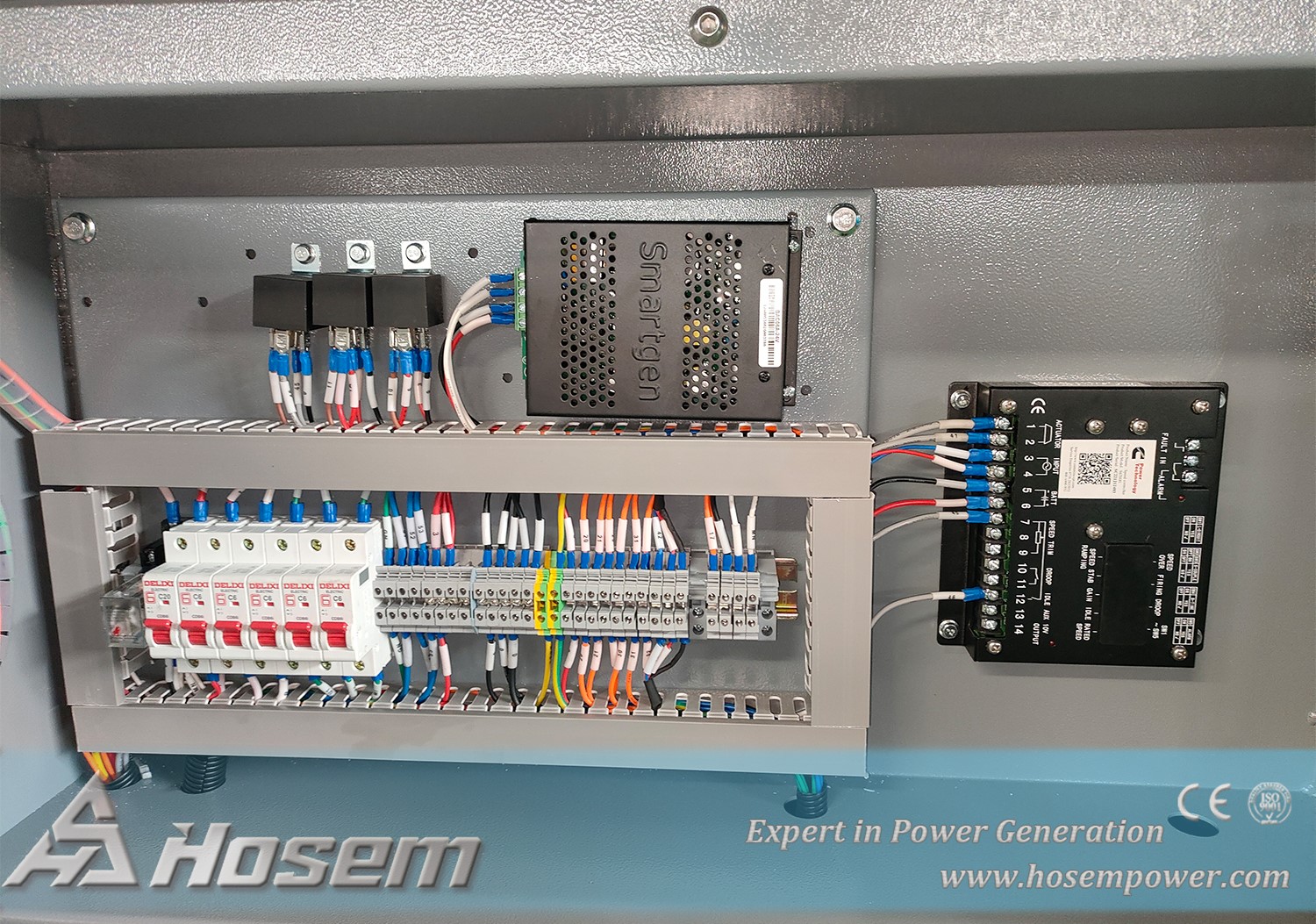

| Control Panel Specification |
| Controller Brand | Smartgen |
| Controller Model | HGM6120 |
| Breaker Brand | Delixi |
| Breaker Capacity | 250A |
| Battery Charger | Supply |
| Emergency Stop Button | Supply |
| Automatic Mains Fail (AMF) | Supply |
| The control panel supply the full protection with Alarm and Shutdown of the diesel generator include High Temp, Low Oil Pressure, Over / Under Speed, Over Load, Start / Stop Fail, Under / Over Voltage etc. |
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller. |
Hosem Power's diesel genset combines innovation, quality, and reliability to provide a robust power solution for your diverse needs.
