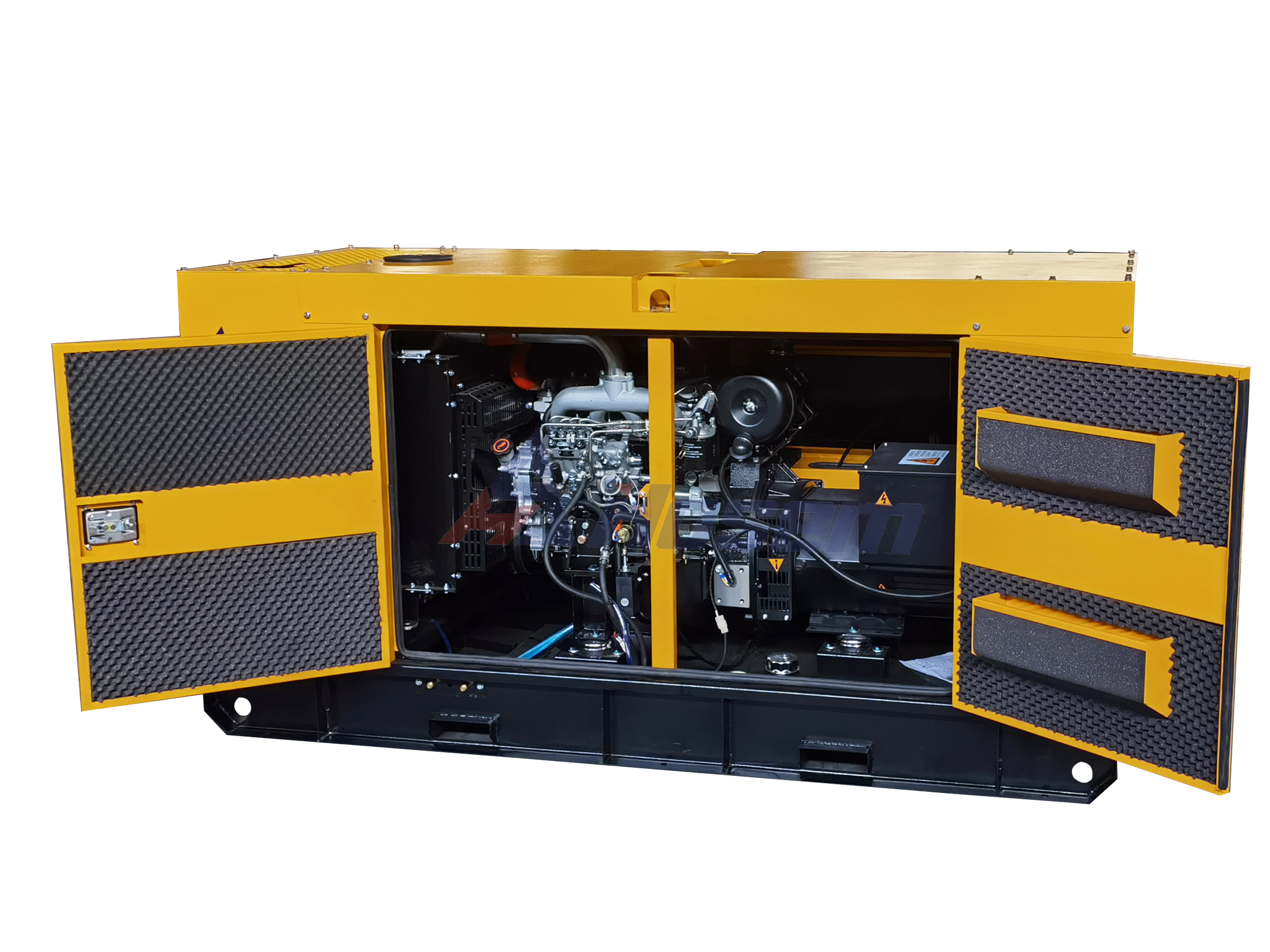

60kVA Diesel Genset By Deutz Engine 66kVA Economical generator for Business and Home
Specification
| Generator Set Specification |
| Model | A-DE66 |
| Max. Power | kVA | 66 |
| kW | 52.8 |
| Rate Power | kVA | 60 |
| kW | 48 |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 86.6 |
| Fuel Tank Capacity | L | 125 |
| Dimension For Open-type Genset | mm | 1850 X850 X 1250 |
| Weight For Open-type Genset | kg | 950 |
| Dimension For Soundproof Genset | mm | 2300 X900 X 1250 |
| Weight For Soundproof Generator | kg | 1250 |
| Noise Level for Soundproof Generator at 7M | dBA | 75 |
| Battery | Two of Free Maintenance Battery |
Technical data--Alternator
| Alternator Specification |
| Alternator Manufacturer | Fuzhou Hosem Power Co., Ltd. |
| Alternator Model | ASF224E |
| Alternator Brand | Hosem |
| Rate Output | kVA | 60 |
| Frequency | Hz | 50Hz |
| Altitude | M | ≤1000 |
| Insulation | Class H |
| Phase | 3 Phase |
| Working Temperature without power decrease | ≤40℃ |
| Working Altitude without power decrease | ≤1000m |
| Automatic Voltage Regulation | SX460 |
| Protection Grade | IP23 |
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional |
Technical data--Engine
| Engine Specification |
| Engine Manufacturer | Deutz (Dalian) Engine Co., Ltd. |
| Engine Brand | Deutz |
| Engine Model | BF4M2012 |
| No. of Cylinder | 4 Cylinder in line |
| Aspiration | Turbocharged & Aftercooled |
| Governor | Electric |
| Engine Max. Output Power | kW | 58 |
| Displacement | L | 4.0 |
| Compression Ratio | 19 : 1 |
| Starting Voltage | V | 24 |
| Bore | mm | 101 |
| Stroke | mm | 126 |
| Lubrication Oil Capacity | L | 8.5 |
| Intake Air Flow | M3/Min | N.A. |
| Fuel Consumption at 100% Load | L/H | 13.7 |
Technical data--Controller
| Control Panel Specification |
| Controller Brand | Smartgen |
| Controller Model | HGM6120N |
| Breaker Brand | Delixi |
| Breaker Capacity (A) | 125 |
| Battery Charger | Smartgen Model BAC06A |
| Emergency Stop Button | Supply |
| Automatic Mains Fail (AMF) | Supply |
| Fuel Level | Supply |
| Automatic Transfer Switch | ATS as optional part |
| The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm). |
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller. |
Description
1.Powered by Deutz engines, this 60kVA diesel generator set provides a reliable and economical power solution for a variety of commercial and domestic applications. Standby power is 66kVA, providing efficient and cost-effective power generation for a variety of applications.
2.The reliable 60kVA Deutz diesel generator stands out as a reliable power solution, delivering consistent, efficient performance. This generator features the famous Deutz engine, which ensures stable and reliable operation, making it a reliable choice for a variety of applications.
3.We built this generator with our commitment to sustainability. It uses advanced emission control technology and complies with environmental protection practices.
4.The high-quality stainless steel hinge material makes the generator have a longer service life and improves durability for customers.
5.You can have peace of mind if there is a sudden power outage. The capacity of 60kVA is enough to power basic household appliances, ensuring comfort and safety.
6.We have options equipped with ATS functionality. The ATS is specifically designed as an emergency safety power source in the event of a sudden mains power interruption. If the external power grid suddenly loses power, the generator set can automatically start up to power the load. When the power supply is restored, the generator set will automatically switch the user's load to the external power grid and shut down automatically.
7.Designed to meet the diverse power needs of businesses and homes, this 60 KVA generator ensures a stable and reliable power supply.
8.Whether you're running a business or looking for reliable backup power for your home, Deutz Engine's 60kVA diesel generator sets are the ones you can trust.
FAQ:
Q1: What is the brand name of the Deutz Generator Set?
A1: The brand name of the Deutz Generator Set is Hosem.
Q2: What is the model number of the Deutz Generator Set?
A2: The model number of the Deutz Generator Set is A-DE66.
Q3: Where is the Deutz Generator Set from?
A3: The Deutz Generator Set is from China.
Q4: What is the power output of the Deutz Generator Set?
A4: The power output of the Deutz Generator Set depends on the specific model.
Q5: Can we customize the product?
A5: We have a very experienced technical team, we can customize any product according to your requirements, such as synchronization system, wet exhaust system, ultra-silent system.
