120kW Cummins 6BTAA5.9G2 Engine 110kW Diesel Genset 6 Cylinder
Specification
| Generator Set Specification |
| Model | A-C150 |
| Max. Power | kVA | 150 |
| kW | 120 |
| Rate Power | kVA | 138 |
| kW | 110 |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 198.5 |
| Fuel Tank Capacity | L | 250 |
| Dimension For Open-type Genset | mm | 2200 X 900 X 1380 |
| Weight For Open-type Genset | kg | 1400 |
| Dimension For Soundproof Genset | mm | 3200 X 1080 X 1500 |
| Weight For Soundproof Generator | kg | 1920 |
| Noise Level for Soundproof Generator at 7M | dBA | 75 |
| Battery | Two of Free Maintenance Battery |
Technical data--Engine
| Engine Specification |
| Engine Manufacturer | Dongfeng Cummins Engine Co., Ltd. |
| Engine Brand | Cummins |
| Engine Model | 6BTAA5.9G2 |
| No. of Cylinder | 6 Cylinder in line |
| Aspiration | Turbocharged and Air to Air Aftercooled |
| Governor | Electric |
| Engine Max. Output Power | kW | 132 |
| Displacement | L | 5.9 |
| Compression Ratio | 17.3 : 1 |
| Starting Voltage | V | 24 |
| Bore | mm | 102 |
| Stroke | mm | 120 |
| Lubrication Oil Capacity | L | 16.4 |
| Intake Air Flow | M3/Min | 7.6 |
| Fuel Consumption at 100% Load | L/H | 30 |
Technical data--Alternator
| Alternator Specification |
| Alternator Manufacturer | Fuzhou Hosem Power Co., Ltd. |
| Alternator Model | ASF274E |
| Alternator Brand | Hosem |
| Rate Output | kVA | 150 |
| Frequency | Hz | 50Hz |
| Altitude | M | ≤1000 |
| Insulation | Class H |
| Phase | 3 Phase |
| Working Temperature without power decrease | ≤40℃ |
| Working Altitude without power decrease | ≤1000m |
| Automatic Voltage Regulation | SX460 |
| Protection Grade | IP23 |
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional |
Technical data--Controller

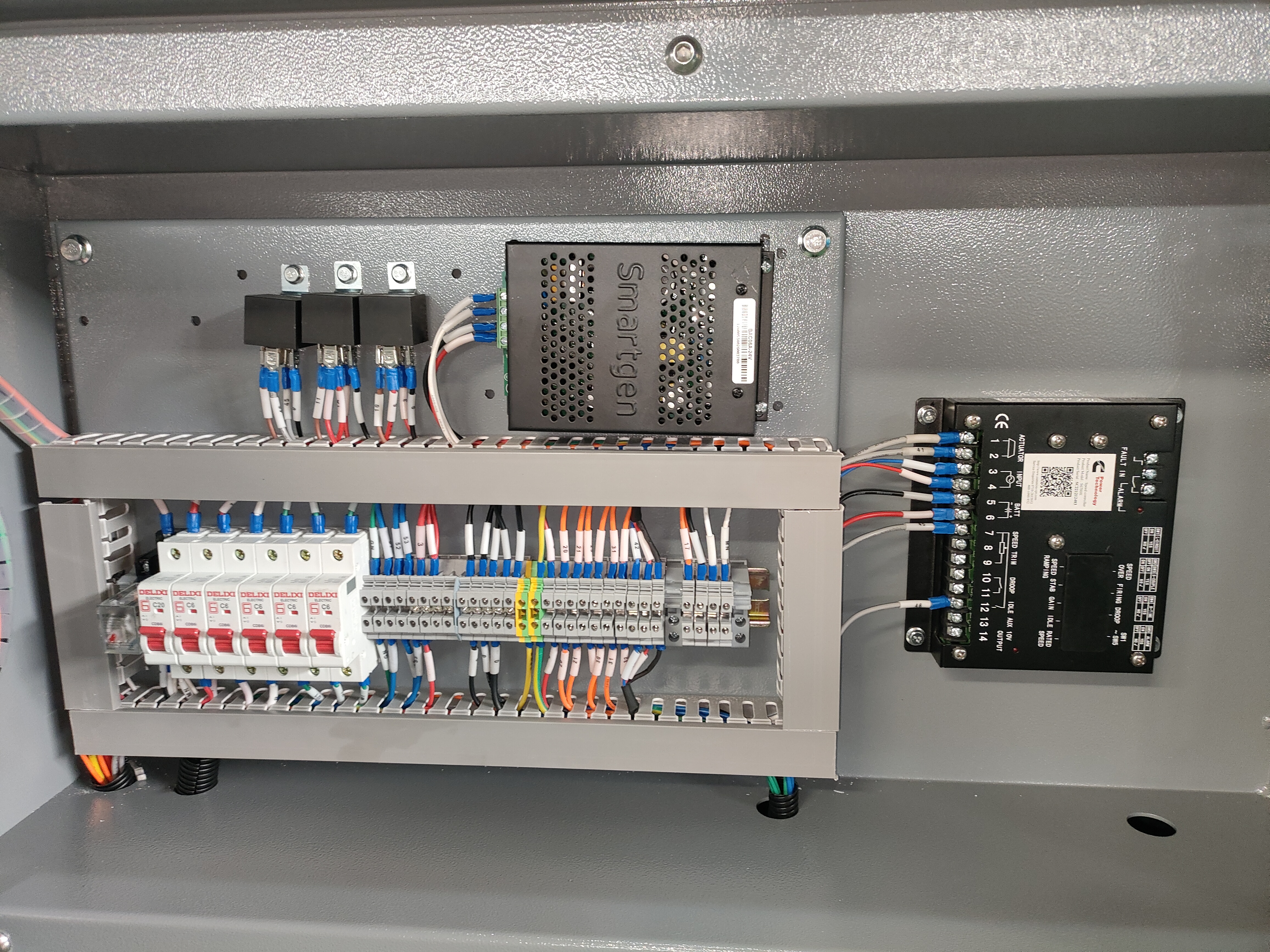

| Control Panel Specification |
| Controller Brand | Smartgen |
| Controller Model | HGM6120 |
| Breaker Brand | Delixi |
| Breaker Capacity (A) | 250 |
| Battery Charger | Smartgen Model BAC06A |
| Emergency Stop Button | Supply |
| Automatic Mains Fail (AMF) | Supply |
| Fuel Level | Supply |
| Automatic Transfer Switch | ATS as optional part |
| The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm). |
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller. |
Description
1. In the modern world, electricity is an integral part of life and work. Many businesses and households choose diesel generators as a reliable source of power to ensure smooth business operations.
2.Through advanced fuel injection technology and optimized design, our generators achieve excellent fuel efficiency and reduce environmental impact.
3.From factory to office, from farm to construction site, our 150kva Cummins diesel generator can meet your power needs.
4.138kVA prime power and 150kva standby power by 6BTAA5.9G2 Cummins engine.
5.400/230V Rate Voltage, 50Hz / 60Hz with soundproof or open-type for option.
6.Smartgen HGM6120 controller can be configured to monitor and adjust the operation of the generator to ensure the stability and reliability of power supply.
7.The simple and easy-to-use maintenance interface and monitoring system of the 150KVA Cummins diesel generator set makes daily maintenance and monitoring work more convenient and efficient.
8.Fuzhou Hosem Power adopts a sturdy and durable genset unit design that can adapt to a variety of environments and working conditions, ensuring long-term and stable operation.
9.Manufacured strictly according to ISO9001, CE internatioal quality management system.
10.You don’t have to worry about after-sales service. Our company has professionals to solve technical problems of diesel generator sets.
FAQ:
Q1: What is the brand name of the Cummins Generator Set?
A1: The brand name of the Cummins Generator Set is Hosem.
Q2: What's your payment terms?
A2: 30% T/T With Order, 70% balance paid by T/T before shippment.
Q3: Where is the Cummins Generator Set from?
A3: The Cummins Generator Set is from China.
Q4: What is the power output of the Cummins Generator Set?
A4: The power output of the Cummins Generator Set depends on the specific model.
Q5: Can we customize the product?
A5: We have a very experienced technical team, we can customize any product according to your requirements, such as synchronization system, wet exhaust system, ultra-silent system.
