480kVA Cummins Diesel Generator Silent Type Powered by 6ZTAA13-G2 with Electric Governor

  • 1
  • 2

Brand Name : Hosem

Model Number : A-C480HS

Certification : CE

Place of Origin : Fuzhou, CHINA

MOQ : 1 Unit

Price : Negotiable

Payment Terms : T/T

Supply Ability : 350 Units Per Month

Delivery Time : 30-35days

Packaging Details : Wooden Package or Plastic Foam Package

Prime Power : 350kW

Standby Power : 385kW

Rate Voltage : 220/127

Frequency : 60Hz

Engine Model : 6ZTAA13-G2

No. of Cylinder : 6 Cylinder in line

Governor : Electric

Alternator Model : Hosem ASF 314FS

Power Factor : 0.8

AVR Model : KRS440B

Phase : 3 Phase

Contact Now

480kVA Cummins Diesel Generator Silent Type Powered by 6ZTAA13-G2 with Electric Governor



Our 480kVA Cummins silent diesel generator set uses a high-performance Cummins 6ZTAA13-G2 engine and is equipped with an electric governor, which can better achieve precise speed control and stable output. It is suitable for both standby and continuous power supply applications.



The 480kVA diesel generator features an efficient noise reduction design and is enclosed in a weatherproof soundproof canopy, making it ideal for environments with strict noise requirements. 50Hz/60Hz frequency standards are available, in line with international power output specifications.



480kVA Cummins Diesel Generator Silent Type Powered by 6ZTAA13-G2 with Electric Governor





Specification

 Generator Set Specification
 Model A-C481HS
 Max. Power kVA 481
kW 385
 Rate Power kVA 438
kW 350
 Frequency Hz 60
 Rate Voltage V 220/127
 Rate Current A 1148.2
 Dimension For Open-type Genset mm 3300 X 970 X 1650
 Weight For Open-type Genset kg 1950
 Dimension For Soundproof Genset mm 4250 X 1550 X2180
 Weight For Soundproof Generator kg 3800



Datasheet​--Engine

 Engine Specification
 Engine Manufacturer Dongfeng Engine Co., Ltd.
 Engine Brand Cummins
 Engine Model 6ZTAA13-G2
 No. of Cylinder 6 Cylinder in line
 Aspiration   Turbocarged and Air to Air Aftercooed
 Governor Electric
 Engine Max. Output Power kW 415
 Displacement L 13.0
 Starting Voltage V 24
 Bore mm 130
 Stroke mm 163
 Lubrication Oil Capacity L 45



Datasheet​--Alternator

 Alternator Specification
 Alternator Manufacturer Fuzhou Hosem Power Co., Ltd.
 Alternator Model ASF314FS
 Alternator Brand Hosem
 Rate Output kVA 440
 Frequency Hz 60Hz
 Altitude M ≤1000
 Insulation Class H
 Voltage Regulation AVR Model KRS440B
 Protection Grade IP23
 Alternator for optional

Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional



Datasheet​--Controller

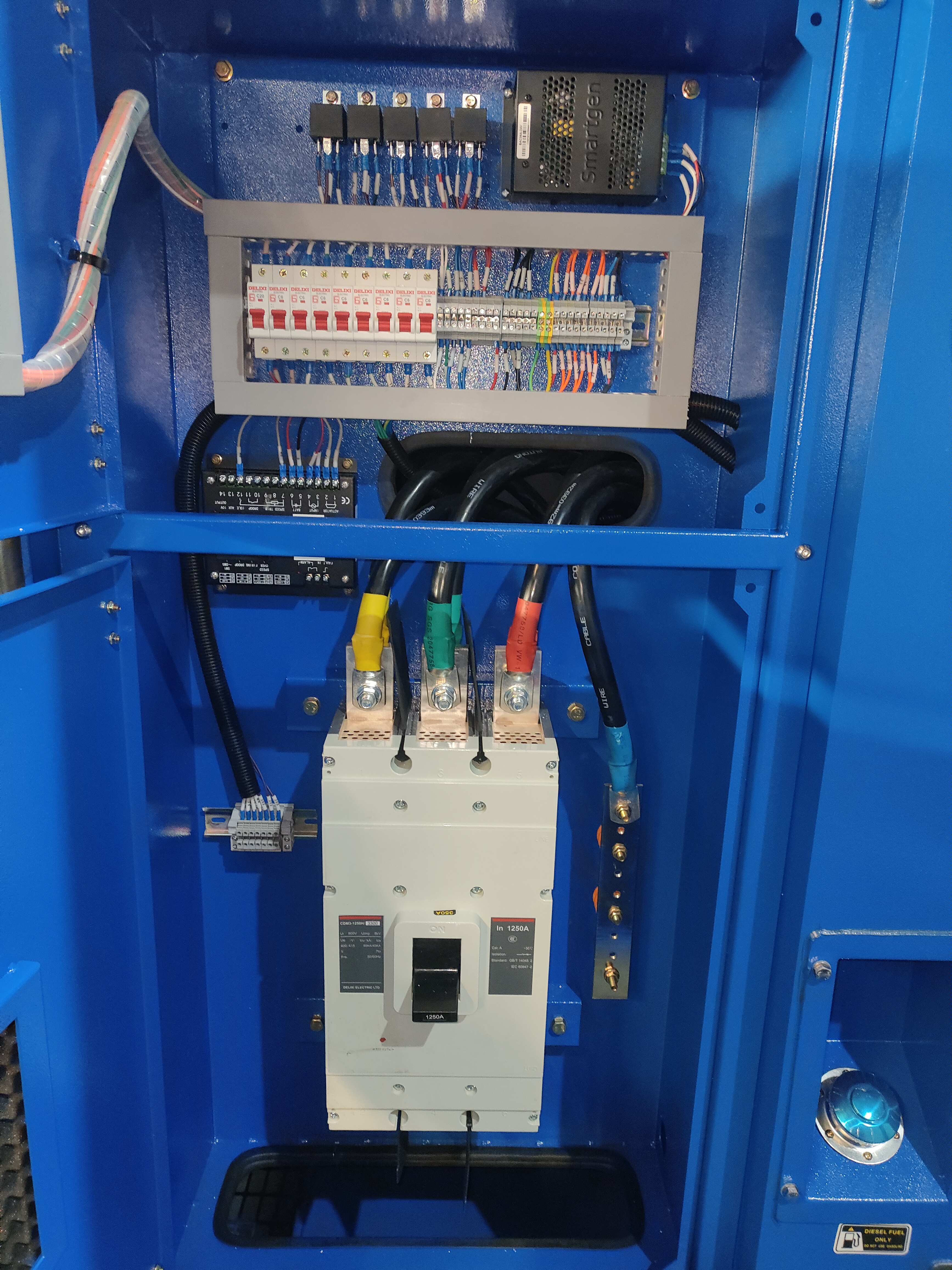

 Control Panel Specification
 Controller Brand Smartgen
 Controller Model HGM6120
 Breaker Brand Delixi
 Breaker Capacity 1250A
 Battery Charger Supply
 Emergency Stop Button Supply
 Automatic Mains Fail (AMF) Supply
 The control panel supply the full protection with Alarm and Shutdown of the diesel generator include   High Temp, Low Oil Pressure, Over / Under Speed, Over Load, Start / Stop Fail, Under / Over Voltage     etc.
 Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.



480kVA Cummins Diesel Generator Silent Type Powered by 6ZTAA13-G2 with Electric Governor        480kVA Cummins Diesel Generator Silent Type Powered by 6ZTAA13-G2 with Electric Governor



FAQ:

Q1: What is the price?

A: The price of our diesel generator is based on several factors, including the brand, power capacity, order quantity, payment terms(such as FOB, EXW, CIF) and the customer’s specific requirements etc. For an accurate quotation, please feel free contact me for quotation.



Q2: How long does it take to deliver this diesel generator set?

A: The delivery time for diesel generators is usually around 30 days.



Q3:What is the packaging of diesel generator?

A: The packaged in a wooden package or plastic foam package.
