150kVA Silent Cummins Diesel Genset With Stamford Alternator For Industrial Use
Our 150kVA silent Cummins diesel generator is specially designed for industrial use and reliable durability. Powered by an original Cummins engine and equipped with a Stamford alternator, it delivers excellent and stable performance, ensuring reliable voltage output for your operations.
The soundproof canopy keeps noise levels below 75 dB at a distance of 7 meters, making it suitable for both indoor and outdoor applications. With a user-friendly design for easy maintenance and continuous operation, this generator set is an ideal choice for factories, construction
sites, warehouses, data centers, and other industrial facilities.
Specification
| Generator Set Specification |
| Model | A-C165 |
| Max. Power | kVA | 165 |
| kW | 132 |
| Rate Power | kVA | 150 |
| kW | 120 |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 216.5 |
| Fuel Tank Capacity | L | 280 |
| Dimension For Open-type Genset | mm | 2200 X 900 X 1380 |
| Weight For Open-type Genset | kg | 1250 |
| Dimension For Soundproof Genset | mm | 3200 X 1080 X 1500 |
| Weight For Soundproof Generator | kg | 1920 |
| Noise Level for Soundproof Generator at 7M | dBA | 75 |
| Battery | Two of Free Maintenance Battery |
Datasheet--Engine
| Engine Specification |
| Engine Manufacturer | Dongfeng Cummins Engine Co., Ltd. |
| Engine Brand | Cummins |
| Engine Model | 6BTAA5.9-G12 |
| No. of Cylinder | 6 Cylinder in line |
| Aspiration | Turbocharged and Air to Air Aftercooled |
| Governor | Electric |
| Engine Max. Output Power | kW | 154 |
| Displacement | L | 5.9 |
| Compression Ratio | 17.3 : 1 |
| Starting Voltage | V | 24 |
| Bore | mm | 102 |
| Stroke | mm | 120 |
| Lubrication Oil Capacity | L | 16.4 |
| Intake Air Flow | M3/Min | 7.6 |
| Fuel Consumption at 100% Load | L/H | 34 |
Datasheet--Alternator
| Alternator Specification |
| Alternator Manufacturer | Stamford |
| Alternator Model | UCI 274 F |
| Alternator Brand | Stamford |
| Rate Output | kVA | 150 |
| Frequency | Hz | 50Hz |
| Altitude | M | ≤1000 |
| Insulation | Class H |
| Phase | 3 Phase |
| Working Temperature without power decrease | ≤40℃ |
| Working Altitude without power decrease | ≤1000m |
| Automatic Voltage Regulation | SX460 |
| Protection Grade | IP23 |
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional |
Datasheet--Alternator
| Control Panel Specification |
| Controller Brand | Smartgen |
| Controller Model | HGM6120 |
| Breaker Brand | Delixi |
| Breaker Capacity (A) | 250 |
| Battery Charger | Smartgen Model BAC06A |
| Emergency Stop Button | Supply |
| Automatic Mains Fail (AMF) | Supply |
| Fuel Level | Supply |
| Automatic Transfer Switch | ATS as optional part |
| The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm). |
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller. |
FAQ:
Q1: What is the price?
A: The price of our diesel generator is based on several factors, including the brand, power capacity, order quantity, payment terms(such as FOB, EXW, CIF) and the customer’s specific requirements etc. For an accurate quotation, please feel free contact me for quotation.
Q2: How long does it take to deliver this diesel generator set?
A: The delivery time for diesel generators is usually around 30 days.
Q3:What is the packaging of diesel generator?
A: The packaged in a wooden package or plastic foam package.
|
|

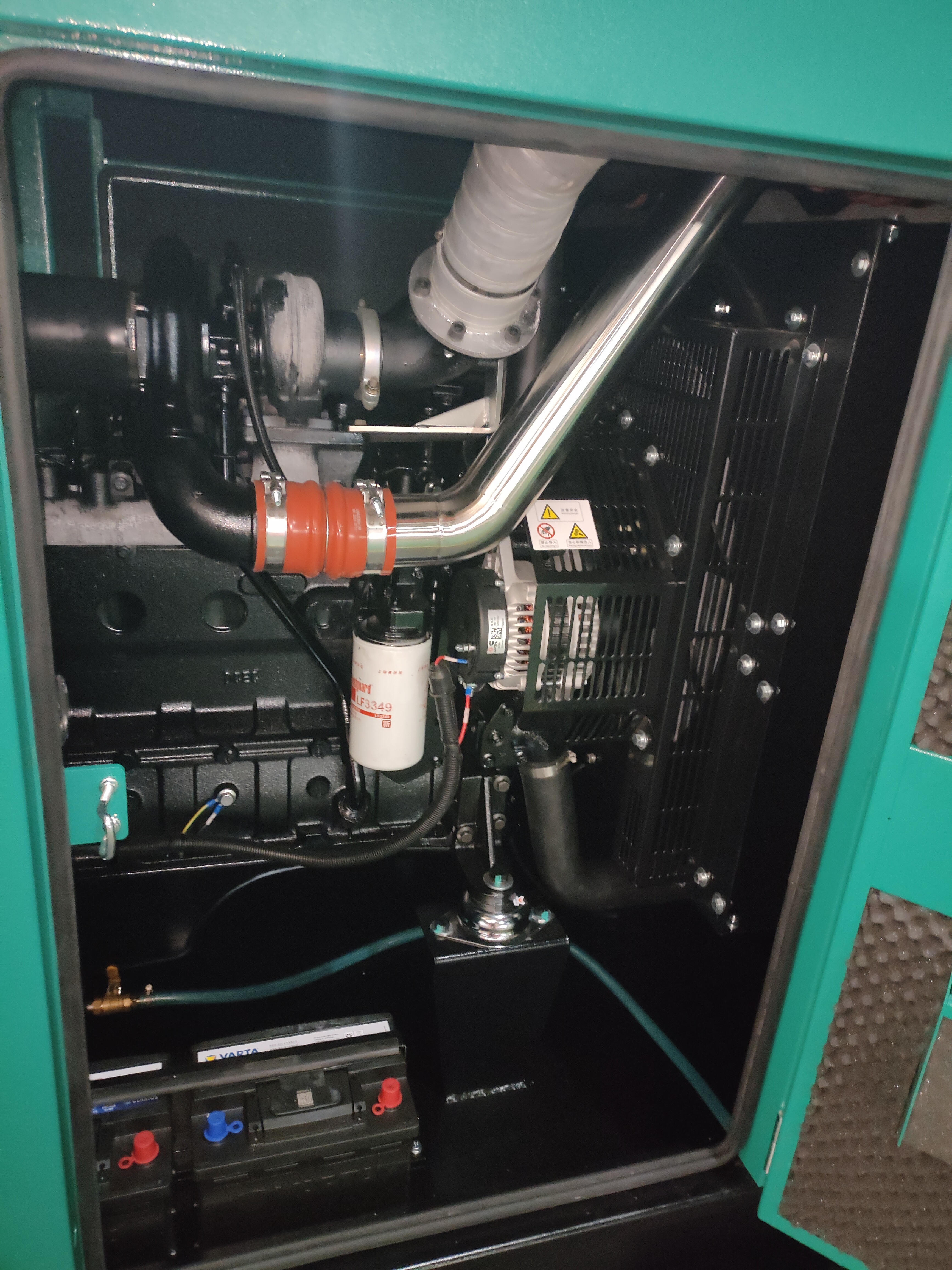

150kVA Silent Cummins Diesel Genset With Stamford Alternator For Industrial Use Images
|
