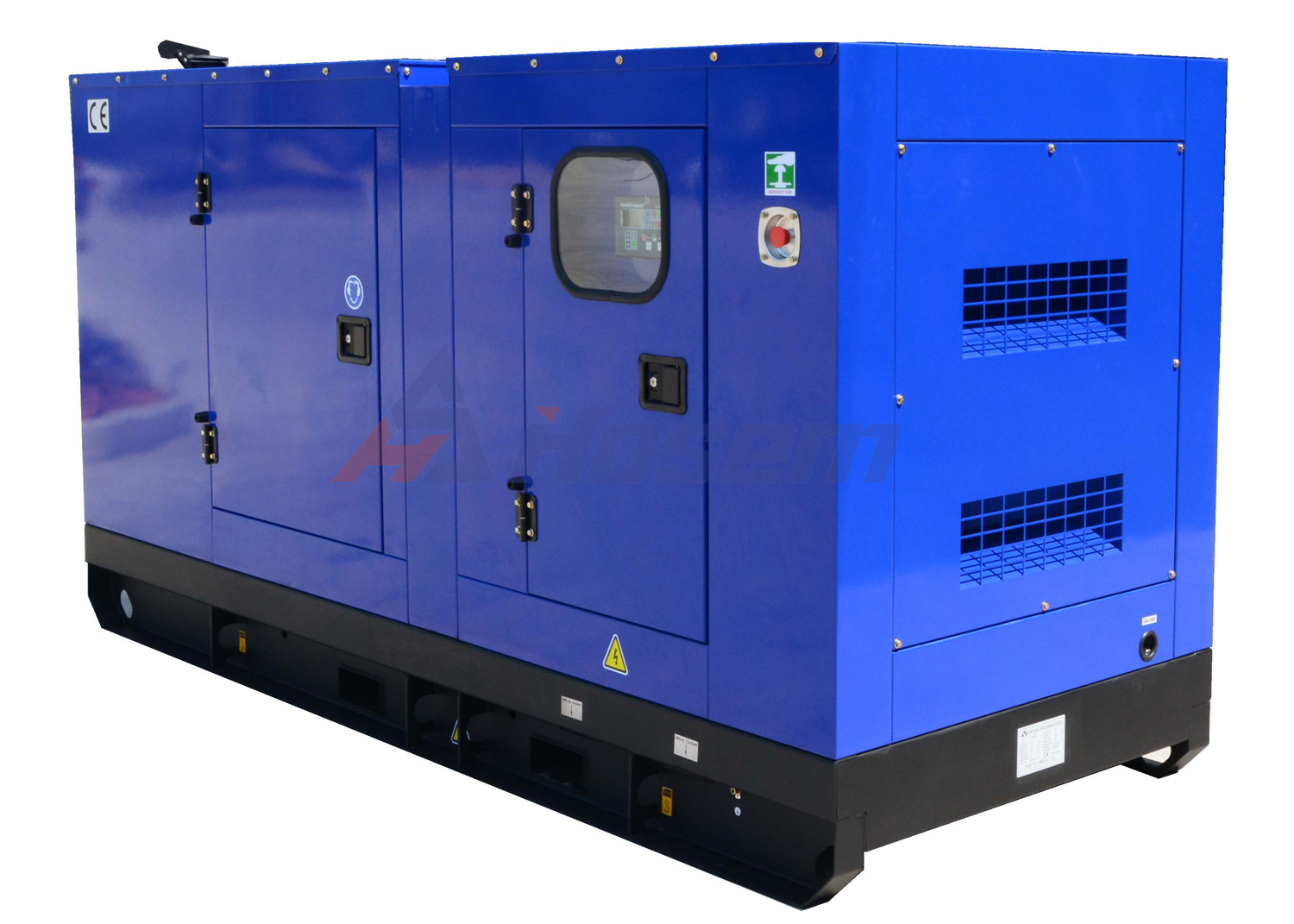

1000 Working Hours Deutz 30kva Silent Genset For Industrial

  • 1
  • 2
  • 3

Brand Name : Hosem

Model Number : A-DE33

Certification : CE, ISO9001, ISO14001

Place of Origin : Fuzhou, China.

MOQ : 1 Set

Price : USD3800.00 to USD4500.00 Per Unit

Supply Ability : 100Sets Per Month

Delivery Time : 20 Days

Packaging Details : Plastic Foam Packing

Genset Type : Outdoor Type

Rated Output : 30kVA

Standby Output : 33kVA

Voltage : 415/240V

Frequency : 50Hz (60Hz For Optional)

Speed : 1500 R.P.M.

Current : 41.7A

Weight : 885kG

Dimension : 2000 X 900 X 1250MM

Diesel Engine : Deutz BFM3 G2

Diesel Engine Power : 32kW at 1500R.P.M.

Alternator : Leroy Somer TAL-A42-C

Alternator Power : 24kW / 30kVA at 50Hz

Controller : ComAp AMF9

Standard : ISO8528

Warranty : One Year or 1000 Working Hours

Contact Now

Deutz Generator 30kVA For Industrial , Silent Diesel Generator

Technical Data of 30kVA Deutz Generator:

Model A-DE33
Max. Power kVA 33
kW 26
Rate Power kVA 30
kW 24
Frequency Hz 50
Rate Voltage V 400/230
Rate Current A 43.3
Fuel Tank Capacity L 60
Dimension For Open-type Genset mm 1650 X 700 X 1250
Weight For Open-type Genset kg 635
Dimension For Soundproof Genset mm 2000 X 900 X 1250
Weight For Soundproof Generator kg 885
Noise Level for Soundproof Generator at 7M dBA 70
Battery One of Free Maintenance Battery

1000 Working Hours Deutz 30kva Silent Genset For Industrial

Technical Data of Deutz Diesel Engine:

Engine Manufacturer Deutz (Dalian) Engine Co., Ltd.
Engine Brand Deutz
Engine Model BFM3 G2
No. of Cylinder 4 Cylinder in line
Aspiration Naturally aspirated
Governor Electric
Engine Max. Output Power kW 32
Displacement L 3.2
Compression Ratio 18.5 : 1
Starting Voltage V 12
Bore mm 98
Stroke mm 105
Lubrication Oil Capacity L 7.5
Intake Air Flow M3/Min N.A.
Fuel Consumption at 100% Load L/H 7.7

1000 Working Hours Deutz 30kva Silent Genset For Industrial

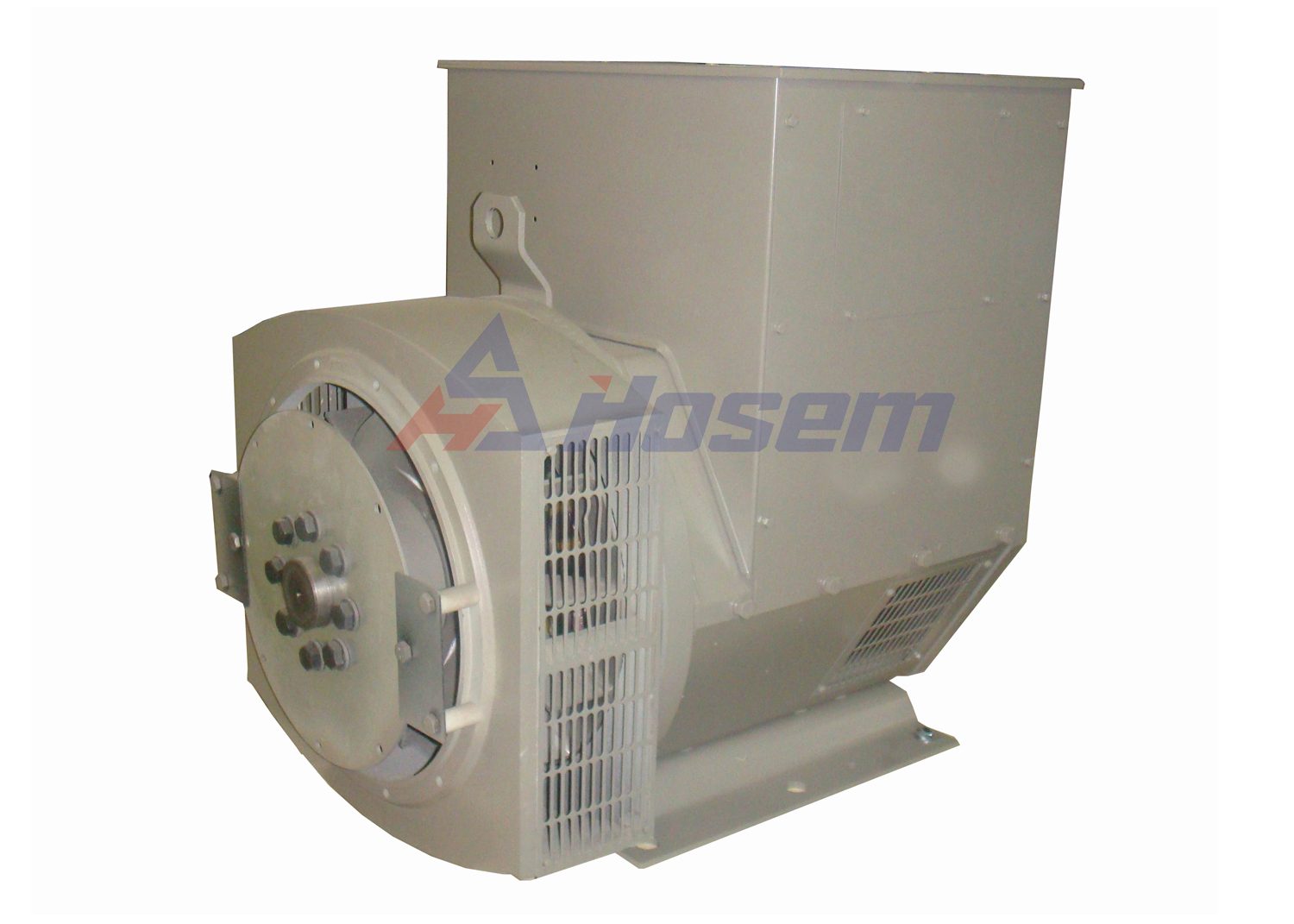

Technical Data of Leroy Somer Alternator:

Alternator Manufacturer Leroy Somer
Alternator Model TAL-A42-C
Alternator Brand Leroy Somer
Rate Output kVA 30
Frequency Hz 50Hz
Altitude M ≤1000
Insulation Class H
Phase 3 Phase
Working Temperature without power decrease ≤40℃
Working Altitude without power decrease ≤1000m
Automatic Voltage Regulation R250
Protection Grade IP23
Alternator for optional Stamford, Marathon, Mecc Alte and Hosem Brushless alternator for optional

1000 Working Hours Deutz 30kva Silent Genset For Industrial

Technical Data of Control Panel:

Controller Brand ComAp
Controller Model AMF9
Breaker Brand Delixi
Breaker Capacity (A) 63
Battery Charger Smartgen Model BAC06A
Emergency Stop Button Supply
Automatic Mains Fail (AMF) Supply
Fuel Level Supply
Automatic Transfer Switch ATS as optional part
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.
